Product Introduction

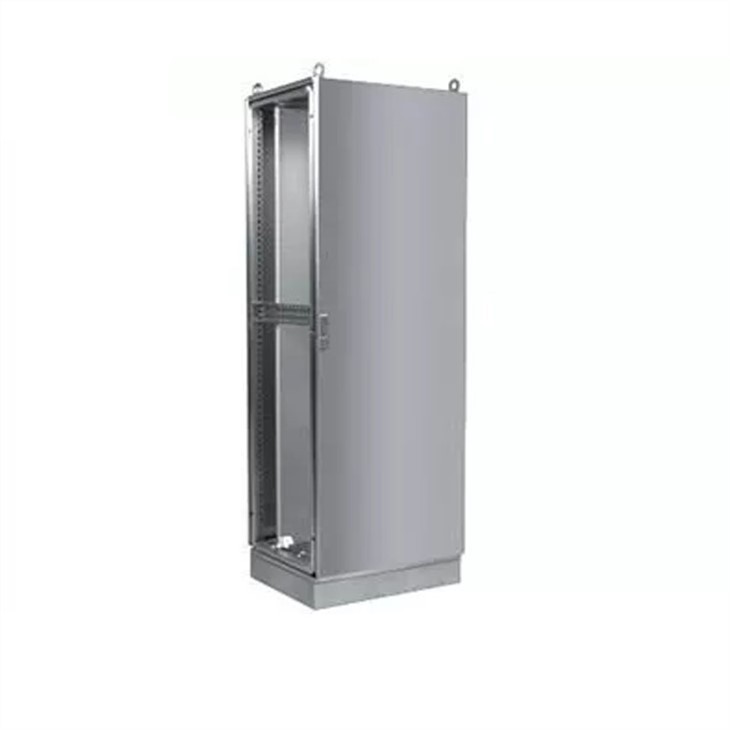

Floor Standing Electrical Enclosures
| Type: | Free Standing Electrical Enclosures | Place of Origin: | China |
| Frame: | Full Welded | Brand Name: | Zhongfeiya Tech |
| Size: | From 1600x600x300mm To 2200x1200x800mm | Certification: | TUV/ SGS |
Floor Standing Enclosure, Single Door, Mild Steel, IP66
Height: 1200, 1400, 1600, 1800 or 2000mm
Width: 600, 800 or 1000mm
Depth: 300, 400 or 500mm
Customized dimensions are accepted
Single door full welded free standing stainless steel industrial enclosure
Materials: AISI 304 pre-grained stainless steel/AISI 316L
Body and removable rear panel: 1.5mm
Door: 2mm
Bottom plate: 1.5mm
Mounting plate: 2.7mm galvanized steel
Body: 1-piece enclosure
Integrated depth profiles with hole pattern allowing mountingplate adjustable in depth
Door: surface-mounted with 4 hinge, including door frame with25mm hole pattern and earthing studs
Rear panel: fitted by M6 screws
Standard facilities for rear door mounting
Lock: external 4-point locking system
Standard fitted double-bit 3mm insert
Single door full welded free standing stainless steel industrial enclosure can be exchanged for standard range of inserts, Euro-cylinder and swing handle
Bottom plates for floor standing electrical enclosures: 1-piece bottom plate with injected polyurethane gasket to ensure maximum sealing
Mounting plate: double folded and slides into position
Adjustable in depth by steps of 25mm
Earthing: door equipped with separate welded earthing studs and earthing to frame can be accomplished
Finish: per-grained stainless steel
Finish of floor standing electrical enclosures
enclosure finish is rAL 7035 textured light-gray polyester powder paint with black accent color of rAL 9005 textured polyester powder paint
Material of floor standing electrical enclosures:Outlet enclosure: sheet steel 1.5mm
Door: 2.0mm
Mounting plate:2.0mm galvanized zinc
Finish:gray polyester powder paint inside and out
Color: RAL7032 or RAL7035
Floor standing electrical enclosures can be supplied include
Enclosure and door,plinth,mounting plate,3-point lock system,gland plate,sealing gasket and accessories
| Reference | Size | ||
| ZFY-A 146/30 | 1400 | 600 | 300 |
| ZFY-A 146/40 | 1400 | 600 | 400 |
| ZFY-A 148/30 | 1400 | 800 | 300 |
| ZFY-A 148/40 | 1400 | 800 | 400 |
| ZFY-A 1410/30 | 1400 | 1000 | 300 |
| ZFY-A 1410/40 | 1400 | 1000 | 400 |
| ZFY-A 1412/40 | 1400 | 1200 | 400 |
| ZFY-A 166/30 | 1600 | 600 | 300 |
| ZFY-A 166/40 | 1600 | 600 | 400 |
| ZFY-A 168/30 | 1600 | 800 | 300 |
| ZFY-A 168/40 | 1600 | 800 | 400 |
| ZFY-A 1610/30 | 1600 | 1000 | 300 |
| ZFY-A 1610/40 | 1600 | 1000 | 400 |
| ZFY-A 1612/30 | 1600 | 1200 | 300 |
| ZFY-A 1612/40 | 1600 | 1200 | 400 |
| ZFY-A 186/30 | 1800 | 600 | 300 |
| ZFY-A 186/40 | 1800 | 600 | 400 |
| ZFY-A 188/30 | 1800 | 800 | 300 |
| ZFY-A 188/40 | 1800 | 800 | 400 |
| ZFY-A 1810/30 | 1800 | 1000 | 300 |
| ZFY-A 206/30 | 2000 | 600 | 300 |
| ZFY-A 206/40 | 2000 | 600 | 400 |
| ZFY-A 208/30 | 2000 | 800 | 300 |
| ZFY-A 208/40 | 2000 | 800 | 400 |
| ZFY-A 2010/30 | 2000 | 1000 | 300 |
Manufacturing Process of Floor Standing Electrical Enclosures
Welding
Zhongfeiya Tech adopts welding robots, automated mechanical equipment used for welding operations. Welding robots can realize production automation and effectively help Zhongfeiya Tech to achieve transformation and upgrading.Offer good price with good quality metal electric enclosures.
spot welding,block welding,full welding,arc welding,Pressure riveting,Pull rivet.
Sealing
Processional custom IP enclosure manufacturer
Formed In Place Foam Gasket Sealing- Electric Enclosures
Punching, stamping
Zhongfeiya Tech has a wide range of equipment 25-200Tthat can support all common punching process.
Professional Manufacturing to custom perfect electrical enclosure.
Zhongfeiya Tech has the capability to tailor made unique electrical enclosure for your project.The precision of metal electrical enclosure is +/- 1mm tolerance for overall cabinet size.And Zhongfeiya Tech can offer standard configuration such as gland plate, radiating fan, fluorescent lamp, lamp switch, ground connections, PU foaming seals etc.
Surface treatment
Polishing , chrome painting, stain chroming, matting ,powder coating
Assembly
we can help assembly simple electronic accessories, parts as customer requirements
