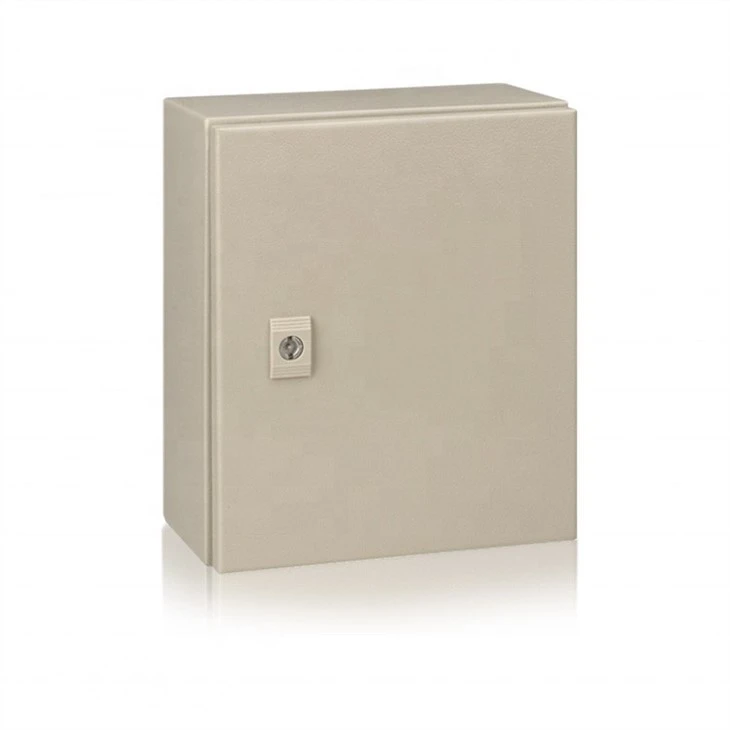

IP66 Wall Mount Electric Enclosure-electrical metal junction box price- Steel, Grey, 300 x 250 x 150mm

Steel Wall-mounting Enclosures are designed to house electricals and protect against harsh, industrial environments for wall mount applications.Impressive styling features like hidden hinges, attractive latching systems make the enclosure suitable addition to use in industrial automation and control, electrical distribution and electronics and industrial networks.

Electrical metal junction box features - Steel, Grey, 300 x 250 x 150mm
cable gland plate with locking system

Two welded M6 x 15 earth studs welded to the back and one M6 x 15 stud on the door

Back piece joined to the sides using a special profile forming a protected sealed area

Water and dust protection IP66

IK10 protect your component from external impact

Hidden hinges to prevent the removal of the door

Right-hinged door

A wide range of IP66 wall mount electric enclosure-electrical metal junction box

Width(mm)	Height(mm)	Depth(mm)	Door(mm)	Body(mm)	MP(mm)
200	200	150	1.2	1.2	2
250	200	150
300	200	150
300	200	200
300	250	150
300	250	200
300	250	250
300	300	150
300	300	200
300	300	250
400	300	150
400	300	200
400	300	250
400	300	300
400	400	150
400	400	200
400	400	250
400	400	300
500	300	150
500	300	200
500	300	250
500	300	300
500	400	150
500	400	200
500	400	250
500	400	300
500	500	150
500	500	200
500	500	250
500	500	300
600	400	150
600	400	200
600	400	250
600	400	300
600	500	150
600	500	200
600	500	250
600	500	300
600	600	150
600	600	200
600	600	250
600	600	300

Electrical junction box body feature:

Premount holes for direct mounting after receiving the goods

Wall-mounting drill holes sealed with plastic plugs to ensure the degree of protection

Wall-mounting bracket fixed from outside (wall monting brackets kits can be supplied and ordered separately)

Direct cable entry

Insulated cable entries with knock-outs, available as an accessory

3-mm standard double-bar lock as standard

Foamed-in polyurethane gasket on the doors to guarantee water and dust tightness for many years

Easily reversible door, fixed with two or three invisible hinges allowing the door to open to 120

Metal hinges - Easily reversible door

Welded earth studs on door and body

junction box electrical 2
