LV Pre-wired Electrical Distribution Feeder Pillars

LV Pre-wired Electrical Distribution Feeder Pillars

Contact us to start the specification creation for LV pre-wired electrical distribution feeder pillars.Zhongfeiya Tech could provide electric feeder pillars that is made of galvanized or Stainless Steel.Zhongfeiya Tech can also provide cast iron electrical distribution pillars, GRP distribution box , LV pre-wired electrical distribution feeder pillars ,and underground retractable distribution box etc.

LV Pre-wired Electrical Distribution Feeder Pillars

LV pre-wired electrical distribution feeder pillars from Zhongfeiya Tech is complied with standard BS7671 & BSEN 61439.Feeder pillars has the feature of long life,low maintenance.It can reduce cost and in creased efficiency.Additionally lv feeder pillars release premium building space.If the customer require to deliver to the site.We could do as required.

Why Choose Tested Feeder Pillars?

Long Life, Low Maintenance
Electrical distribution pillars are made from 3mm or 5mm galvanized sheet steel and powder coat painted for UV resistance.
IP65 rated and fitted with anti-vandal locks.

Reduced Cost, Increased Efficiency
Electrical distribution pillars are located  close to the electricity supply point thereby reducing the amount of low voltage power cabling required, cutting installed cost, civil engineering site work and client running costs.

Release Premium Building Space
The space of feeder distribution system is unavailable for bulky indoor switch gear, compact outdoor distribution feeder pillars liberate high-demand, indoor floor space.

Delivered to Site, Ready to Use

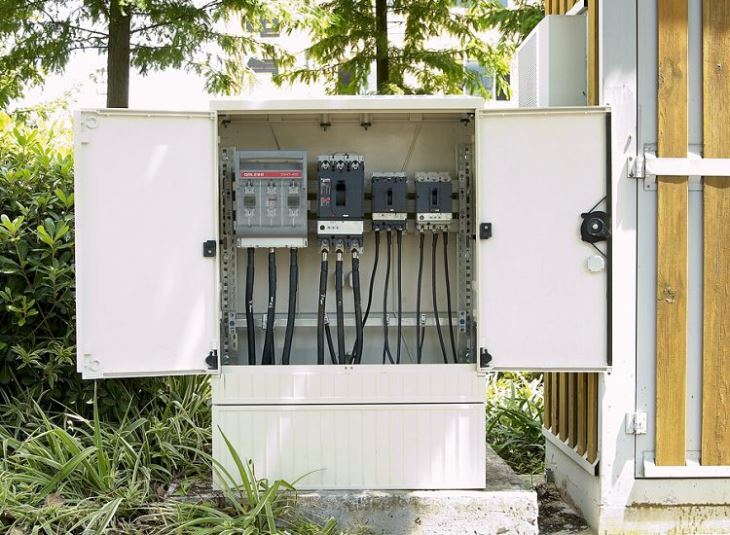

Fully assembled LV distribution pillars are fitted out to customers specification for fast site installation – single phase (240V) and three phase (415V) service pillars for low voltage electricity distribution.

Expand for Future Demand
Spare capacity built into distribution feeder pillar design for retrofitting and upgrading of control, monitoring and extra circuit equipment.

Design of LV pre-wired electrical distribution feeder pillars

The Design Department from Zhongfeiya Tech are experienced engineer and equipped with 3D CAD and electrical design software to facilitate a fast feeder pillar design service – all pre-wired feeder pillars and electrical distribution boards are built in-house and each power system is fully checked, tested and certified to the relevant standards before it is delivered to the customer.

LV Pre-wired Electrical Distribution Feeder Pillars Specification
Material for feeder pillars: Galvanized mild steel nominal thickness 3mm or 5mm
Stainless steel nominal thickness 2.5mm Door seal to IP65

Feeder pillar backboard made from 18mm thick exterior grade plywood

Earth lead supplied from pillar body to door

Danger warning label fitted in a recess in the door

Fast and efficient Online Service for the Design of Electric Feeder Pillar

LV pre-wired electrical distribution feeder pillars can be supplied without backboard to allow on-site installation.

Full electrical layout and circuit drawings of electric feeder pillar available on request

The electrical specification of the pre-wired feeder pillars can accommodate local DNO equipment, group switching, incoming isolation and BS88 fuses. Pillars can be designed to incorporate heaters for humidity control, switched interlock sockets, earth bars, copper busbar sections, separate DNO metering compartments and internal LED lighting.

Customized LV pre-wired electrical distribution feeder pillars

Pre-wired pillars can be equipped with control equipment according to customer specification – low energy pillar lighting using fluorescent lighting which can include battery back-up for emergency situations:

Single & 3 Phase Control/Distribution Systems

Analogue, Digital or Solar Timer Controls

Contactor Relay Systems

Photocell Systems With Oversize Facilities

General Purpose & Custom Design Feeder Pillar Distribution Boards

MCB, RCD, RCBO, BS88 Fused Protection

Cable Termination Options

Anti-Condensation Heaters

Tamper proof Thermostat Control

RCBO Protected Domestic & Industrial Sockets

Over voltage protection of electric feeder pillar electricity supply

Electric feeder pillars can  provide electrical protection against spikes and surges caused by lightning strikes and switch transients – this includes Class 1 & Class 2 protection to protect against the vulnerability of sensitive electronic control equipment to over voltage surges.

Galvanised feeder pillars can be supplied pre-wired or as empty panels tailored by the end user.

 BS7671 & BSEN 61439Feeder Pillar Manufacturer
