Double Door Wall Mounting Enclosure

1. The door of the sheet - metal control cabinet is 25mm above the ground.

2. The 2.5mm - thick mounting plate has 20mm - wide U - shaped bent edges on both sides, which increases the strength of the mounting plate and facilitates handling.

3. The three cable entry covers at the bottom of the control cabinet can be interchanged, are easy to move, facilitate cable entry, and make it easy to drill holes for wiring.

4. There are grounding screws on the control cabinet door.

5. The heavy - duty hinges are easy to install, and it's also easy to replace the cabinet door. The cabinet door can be opened 130°.

6. The plastic slider can be pushed into the cabinet from the front through the guide rail by using the plastic slider guide.

7. The sturdy rectangular frame not only strengthens the strength of the front door but can also be used to fix and install electrical components (used in conjunction with the door - mounted cross - bar).

8. The backplate can be easily installed and fixed with screws; the cabinet door can also be replaced.

9. The gangway lock (301 lock, 401 lock) locks the cabinet door at three points: top, middle, and bottom.

10. The sealing ring is a polyurethane foaming sealing strip to ensure the protection level.

11. The cabinet edge cooperates with the sealing ring to prevent water and dust from falling into the cabinet.

12. (Single - door) left - right interchangeable door - opening design for convenient use.

13. Standard modular mounting hole design for easy installation.

14. Interior light is convenient for installation and inspection (optional component).

15. Document bag is convenient for on - site work (optional component).

16. Installation beams allow for in - cabinet installation without using a mounting plate (optional component).

17. Fans and filters ensure ventilation inside the cabinet, with a protection level of IP54 (optional component).

18. The base is easy to disassemble and install (optional component).

19. Double mounting plates provide a large installation capacity (optional component).

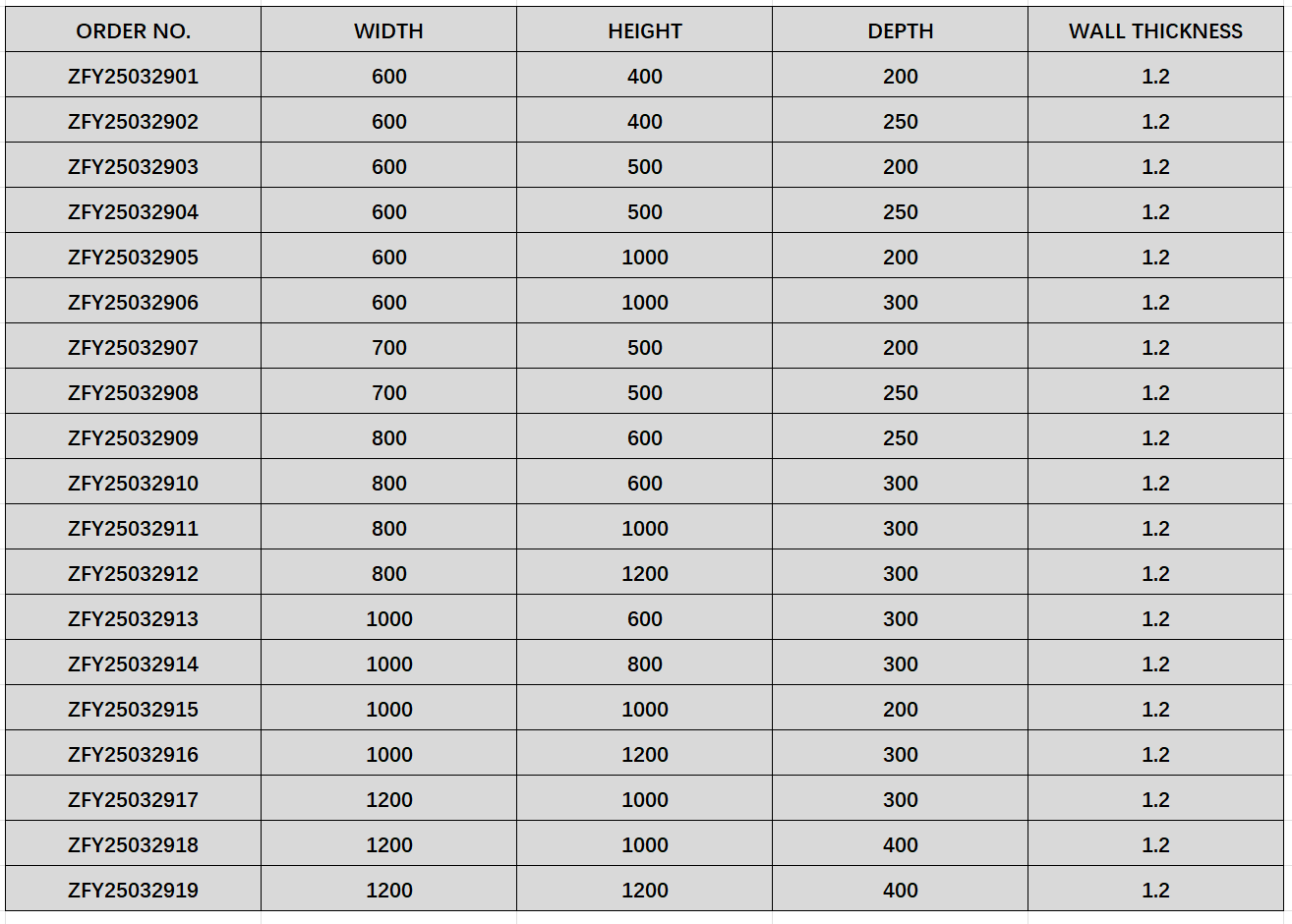

Details of product
