Industrial Control Panel Enclosure
video
Industrial Control Panel Enclosure

Industrial Control Panel Enclosure

Industrial Control Panel Enclosure-Brand supplier ZHONGFEIYTA TECH,​China Customized SMC Fiberglass Outdoor Waterproof Distribution Box With Lock Material:Fiberglass/SMC/FRP/GRP Enclosure Color:White/Grey Protection degree: IP65 Working temperature: -40 to +120 degree Mechanical impact: IK09
Send Inquiry
Chat Now
Product Introduction

Industrial Control Panel Enclosure

China Customized SMC Fiberglass Outdoor Waterproof Distribution Box With Lock

Polyester enclosures(Fiberglass/SMC/FRP/GRP Enclosure)


Material:fiberglass/SMC/DMC, self-extinguishable or UV material are on request.

Resistance against rusting and corrosion by chemical or atmospherical condition.

Easy to machine/ easy to move around and install because of its lightness.

Door hinges allows more than 180°opening.


Features

Protection degree: IP65

Working temperature: -40 to +120 degree

Mechanical impact: IK09

Surface treatment: painted with epoxy polyester coating

Dimension Allowance: ±1mm


ZHONGFEIYA TECH pay attention to the product quality,so we're open to share every detail with our customers.

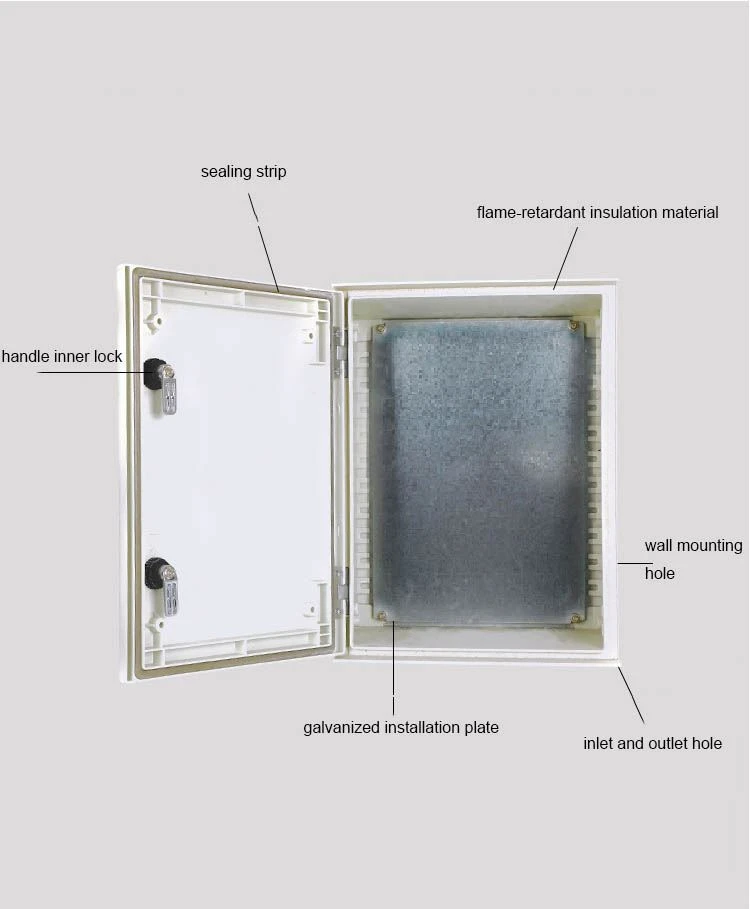

industrial control panel enclosure (11)

-

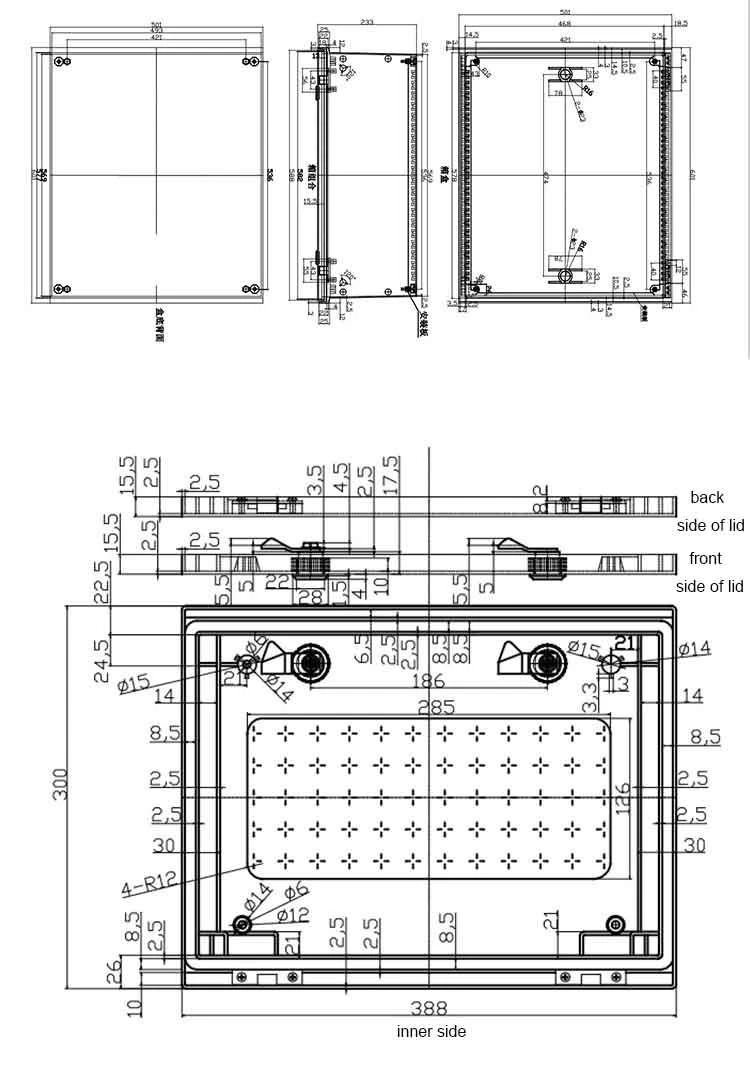

Outline drawing for reference when choosing the right electrical enclosure

industrial control panel enclosure (15)

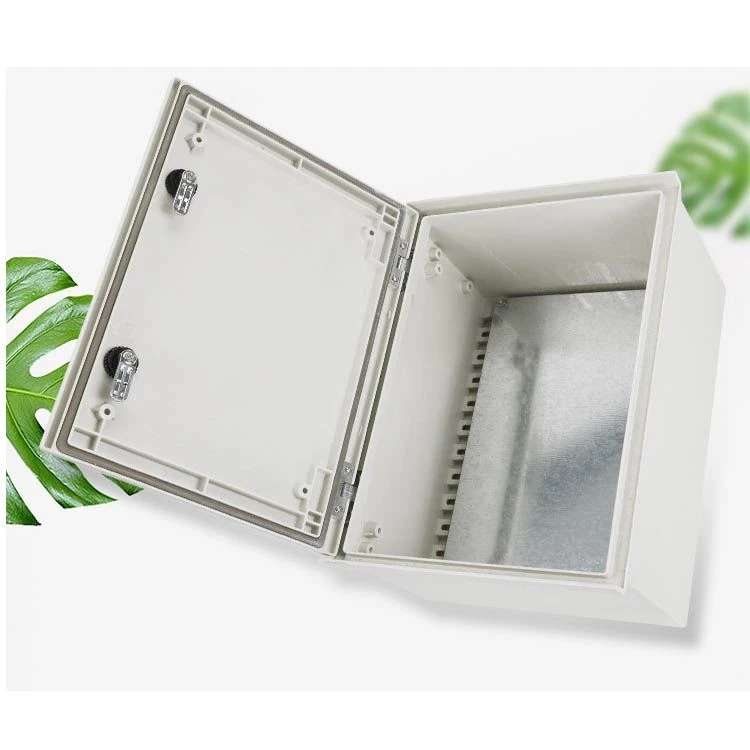

industrial control panel enclosure (13)

Galvanized mounting plate,easy for mounting electrical components such as breakers,sensors etc

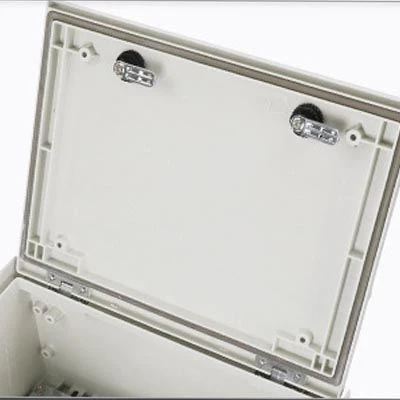

industrial control panel enclosure (16)

                                     High qulaity sealing strip ensure the waterproof grade

industrial control panel enclosure (17)

                                         Goog quality mounting accessories,easy to install

industrial control panel enclosure (18)

More size options:


ItemSize
SMC-302514300*250*140
SMC-403020400*300*200
SMC-404020400*400*200
SMC-504020500*400*200
SMC-604023600*400*230
SMC-605023600*500*230
SMC-806030800*600*300

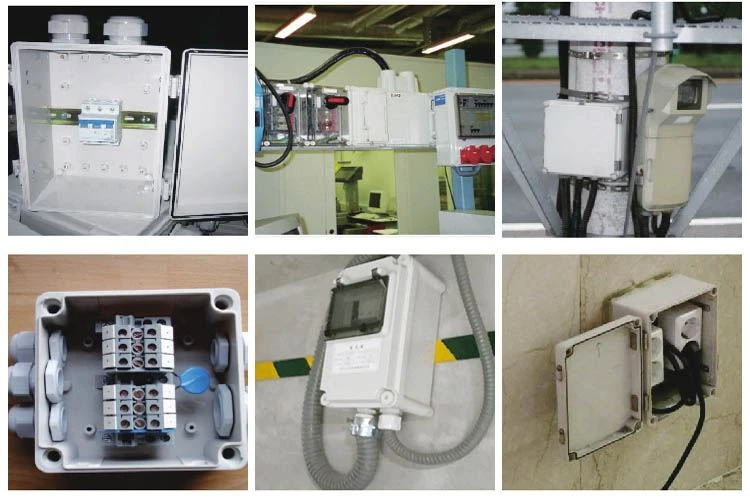

Application:

-for housing sensitive electronic assemblies, pneumatic, hydraulic and electrical devics in commercial and industrial  environments, providing effective shielding of EMI & RFI.

-boxes on internal base for fixing PCB horizontally or connection of earth grounding, terminals, etc

industrial control panel enclosure (10)



Advantages:
-excellent resistance against chemicals.

-can be used in wide temperature range

-can be used indoor, outdoor, even harmful environment, eg. coastal area  where expects to contact sea water

-ZHONGFEIYA TECH is factory direct supply,we can control the product quality and delivery goods on time.

-OEM size is available

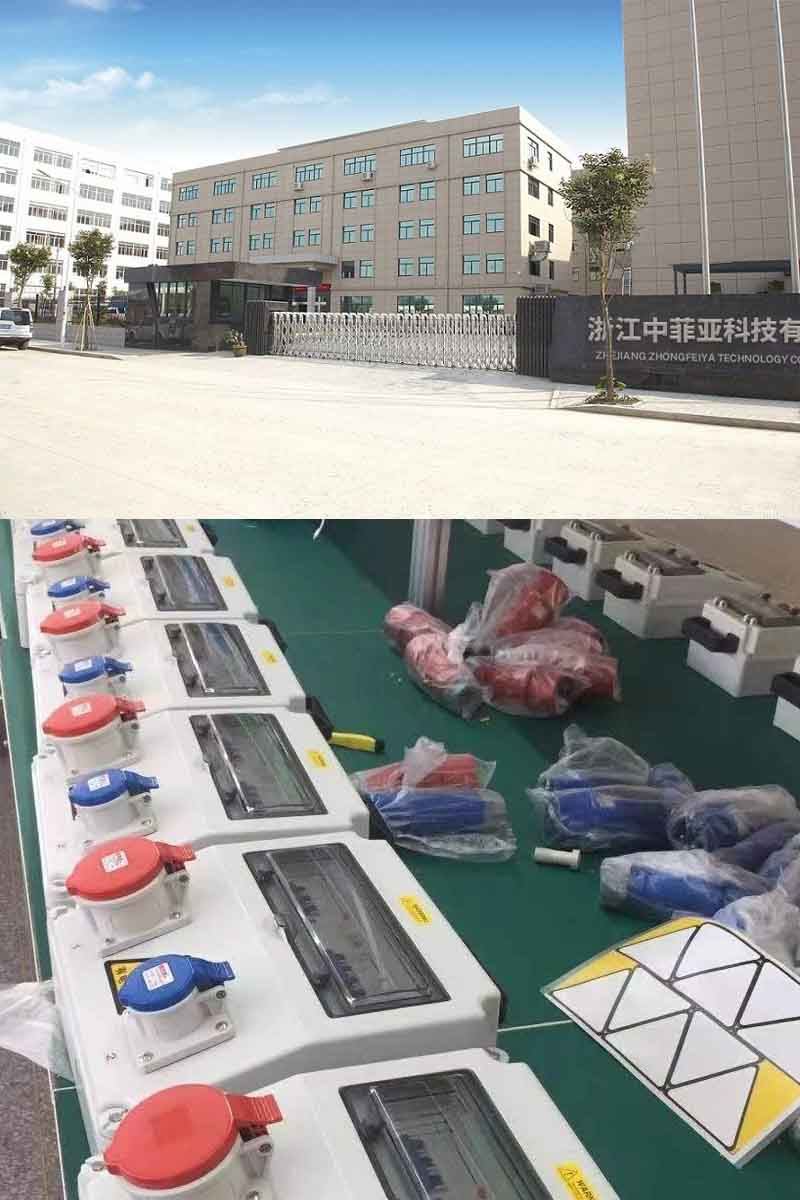

industrial control panel enclosure (1)
