16 Amp Industrial Socket 3 Pin Male Female

ZFY TECH is a factory specializing in the manufacture and export of industrial plugs sockets .connectors,wall socket,panel socket,plastic and metallic waterproof cable connector M type& PG type for more than ten years located in China and the products passed ISO9001 Quality Assurance System, have CCC and CE certificates,design confirm to IEC60309-2, quality's reliable.

Send Inquiry

Chat Now

16 Amp Industrial Socket 3 Pin Male Female

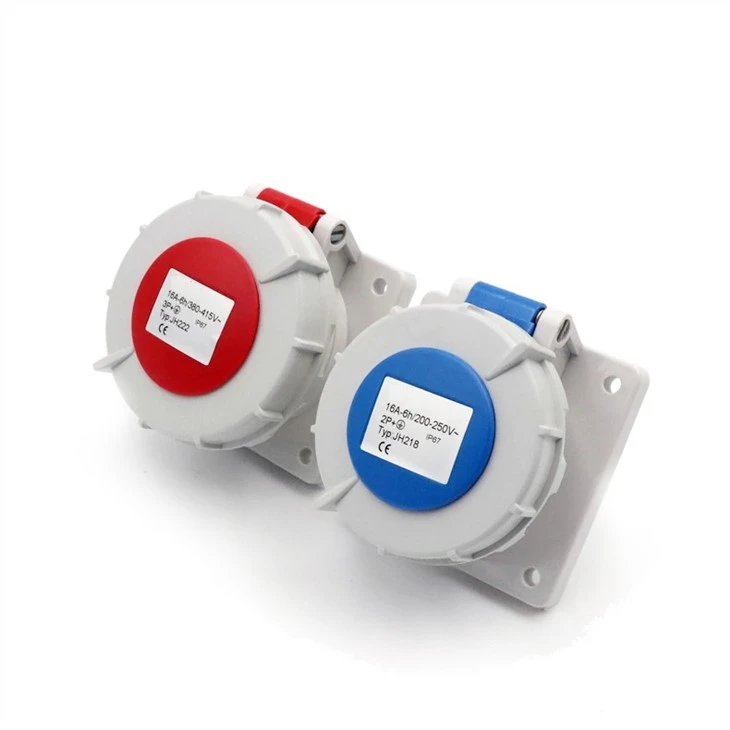

Electrical Plug Socket 2P+Earth Female 16A

Rated current:16A

Rated Voltage : AC 380V ~415V

Poles: 2P+E

IP Rating: IP44

Working Temperature: -25° C~+40° C

Shell Material: Brass and nickel plated RoHS

Earth Contact Position: 6H

Certification: CE, TUV, ISO9001:2008, RoHS, REACH

Standard: IEC60309-1, IEC60309-2

Product Parameter-16 Amp Industrial Socket 3 Pin Male Female

Current	Poles	110V	230V	400V	Package Unit	Weight
		50a.60Hz	50a.60Hz	50a.60Hz	Package Unit	Weight
		3P 4P 5P	3P 4P 5P	3P 4P 5P	PCS/BOX	G/PCS
		4h 4h 4h	6h 9h 9h	9h 6h 6h	PCS/BOX	G/PCS
16A	3	ZFY1462	ZFY1463	ZFY1464	10	130
	4	ZFY1465	ZFY1466	ZFY1467	10	185
	5	ZFY1471	ZFY1472	ZFY1473	10	205

Current		Poles	a	b	c	d	e	f	g.	g.1	h	k	l	l1	α
16A		3	73.5	64	52	60	52	5.3	7	2	79	78	26	50	20°
		4	100	92	58	85	77	5.3	8	2	105	85	27	54	20°
		5	100	92	58	85	77	5.3	8	2	105	96	27	57	20°
Conductor cross-sectional area(mm²)Min To Max 1.5-2.5
