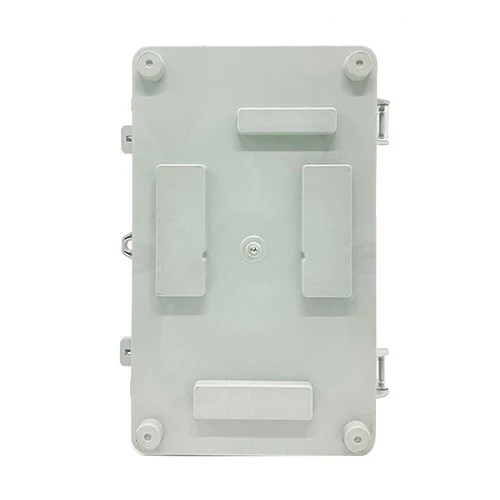

Surface Mounted Electric Meter Box

Surface Mounted Electric Meter Box L343.8mm*W237.4mm*H123.8mm ZFY-H102C

IP55 Single Phase Outdoor Waterproof Electric Enclosure

This type of electric meter box is a multi-functions meter enclosure with NO METAL CONNECTION PARTS. It has multi-installation provisions for mounting the enclosure on Pole or Wall. The enclosure

can accommodate one piece of BS type single phase meter or maximum two pieces of DIN

rail type single phase meters. The IP class can reach IP55. Material of enclosure can be customized.

Surface Mounted Electric Meter Box Technical Specification

1. Dimension: L343.8mm*W237.4mm*H123.8mm

2. Material Of Top Cover: Options -- PC / PC+10%GF / ABS

Material and Color Based On Requirements

3. Material Of Turn Over Flap: PC Transparent

4. Material Of Base: Options -- PC / PC+10%GF / ABS

Material and Color Based On Requirements

5. Protection Degree: IP55

6. Temperature: -30 to 60℃

7. Installation Provision For Cable Connector / Terminal: YES

8. Provision For Meter Installation: Pre-instered Screw Nut And Self-tapping Screw

9. Anti-tamper protection: Seal And Lock For Cover and Seal For Window

10. Flame Resistance Degree: V0

11. Anti-UV: YES

12. Method Of Production: Injection

13. Cover Type: Hinged, Plastic Part

14. Mounting Methods: Wall Mounting By Screw

FAQ

Q1: Are you trading company or manufacturer ?
A: Our boss have two factory. New Factory located in Hangzhou, Zhejiang. Old history Factory located in yueqing,wenzhou,Zhejiang.

Q2: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock, Huge order 15-30 days according to quantity and design.

Q3: Do you provide samples ? is it free?
A: Yes, we offer some samples free of charge for testing. Courier fees collected by clients.Custom Designed samples need to collect mould fees.

Q4: What is the quality of your products guarantee?
A: We have passed ISO9001:2008 Quality Management System Certification, CQM Quality Management System Certification. We offer guarantee period based on detail order and materials..

Q5: How to get an accurate quotation?
A: If you already have a sample at hand, please send us the samples, we will quote to you once we receive the samples.If there is no sample, please send us the technich drawing or design , we will check all the specification ,material, Our mechanical engineer will help evaluate it and offer the mould and goods cost.

A: Yes, OEM/ODM are welcome, pls feel free to send us drawing. We can keep your design be protected under law.
