Double Door Feeder Pillar
ZFY range of feeder pillars has been tried and tested in an extensive variety of applications and conditions to prove their durability against the elements and the rigors of all urban and rural environments.
Send Inquiry
Chat Now
Product Introduction

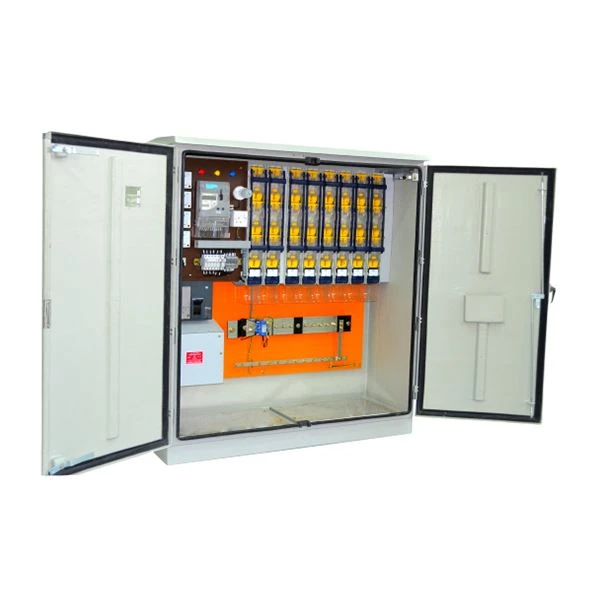

Double door feeder pillar
Packaging & Shipping
Long time shipment & Seaworthy wooden box
Wooden package optional:
1,choose one unit/ wooden box
2,choose 2unit/ wooden box to save cost
Descriptions:
Description
ZFY range of feeder pillars has been tried and tested in an extensive variety of applications and conditions to prove their durability against the elements and the rigors of all urban and rural environments.
ZFYprovides one of the most comprehensive ranges of feeder pillars, both shells and pre-wired with distribution equipment with a range of sizes and options to suit a wide variety of applications.
The range includes Mini pillars manufactured to Maxi double door pillars.
ZFY are committed to providing excellent quality and service and have made a deliberate investment in finished stock to ensure the promptest delivery times.
All products are designed, manufactured and inspected under stringent Quality Control Systems resulting in products and service levels which exceed, the requirements of current legislation and regulations.
SPECIFICATIONS
SPECIFICATIONS:
ZFY designed feeder pillar to a specific customer requirement . Feeder Pillar Panel made of CRCA Sheet, Pedestal mounted 415 volts, Powder coated painting on a suitable size angle iron frame (MS channel base for grouting in the RCC and proper gland in the bottom) with required hardware such as nuts, bolts, washers, provision for earthing with40mmx5mm GI strip on both sides of the feeder pillar panel, complete with Ammeter & Voltmeter along with selector switches and CTs, LED indicating lamps for each phase .

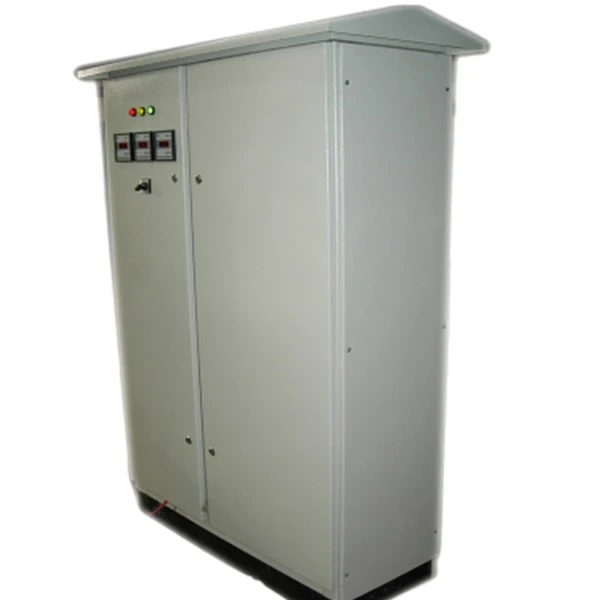

Feeder pillar panel shall be of class IP-55 & a canopy shall be provided at its top to protect the feeder pillar panel against the rain & sunlight.

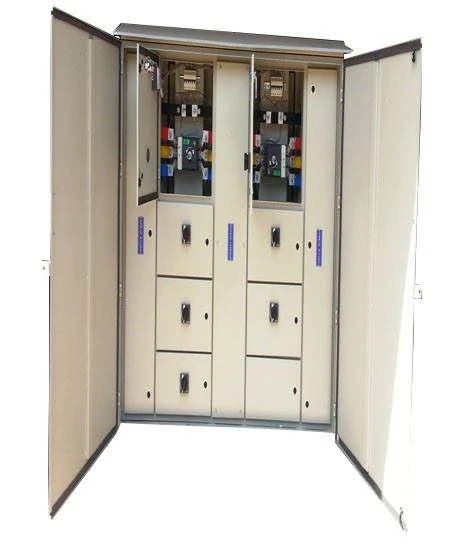

Feeder pillar panel shall be of double door type with provision of gasket. Provision of transparent sheet shall be made to take reading of Ammeter &Voltmeter with out opening the door. Lifting hook to be provided for easy handling of Feeder Pillar Panel.
All dimensions are in mm. General tolerances on dimensions ±10 mm. Manufacturer have to submit GA drawings with exact size and arrangement of all the components of reputed brands for approval.
