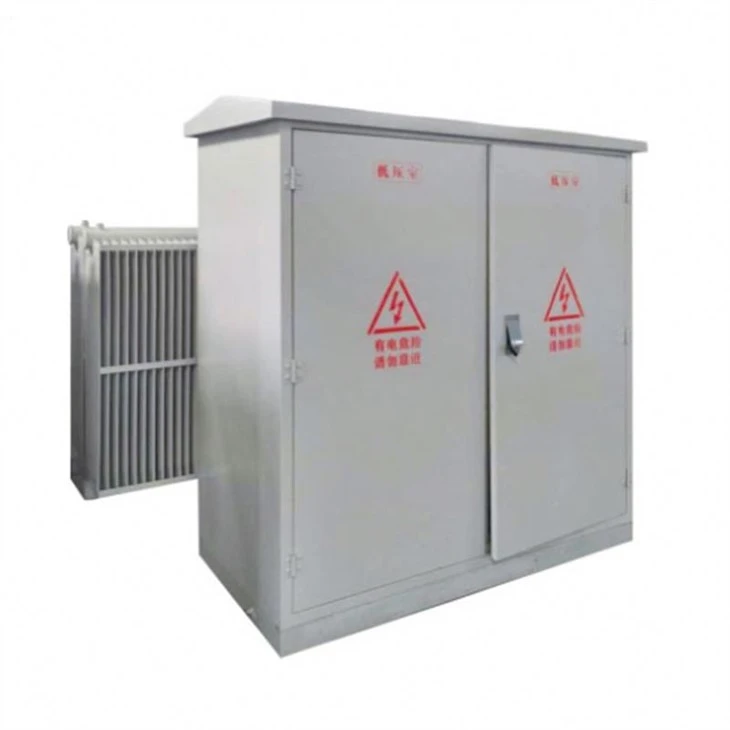

Mini Feeder Pillar 400Amps

Mini Feeder Pillar 400Amps

Packaging & Shipping

Long time shipment & Seaworthy wooden box

Wooden package optional:

1,choose one unit/ wooden box

2,choose 2unit/ wooden box to save cost

Descriptions:

• Alternative to the T or breeches joints in low voltage underground system

• Downstream low distribution box to 1600Amps and 800Amps low voltage feeder pillars

• Less space required for installation

• More aesthetically pleasing than conventional feeder fillars

• More easily located than conventional feeder pillars

SPECIFICATIONS

• 600mm (L) x 120mm (H) x 250mm (W)

• Tested to IP54

• Detachable base suitable for outdoor mounting

• Outgoing terminal for 70mm 2 3 core low voltage cables

• Rated operating voltage of 440 volts

• Rated insulation with stand voltage of 1000 volts

• Rated dynamic short circuit strength with fuse link of 6KA.1 sec

• Transparent shrouded

• Lateral snap on type barries for cable terminations

• Fuse Extractor

• Side removable panels for easy maintenance

More Related designs:

ZFY Tech workshop:

• Busbars with a minimum continuous current rating of 400Amps

• Two (2) terminations for incoming low voltage cables of up to 300mm2

• Six (6) set of outgoing fuse base holders rated at 160Amps

• 18 (6x3) 100 Amps DIN type fuse unit 00SE2

• N4 vertical fuse base with touch proof protection

• Galvanized metal mini feeder pillar housing

• Facilities for earthing and clamps for incoming and outgoing cable

• Two (2) hinged, lockable and detechable doors

• Detachable base and bottom use in a tropical zone with maximum ambient temperature of 40 degrees Celcius and a mean annual temperature of 30 degrees with heavy rainfall and humidity of up to 100%
