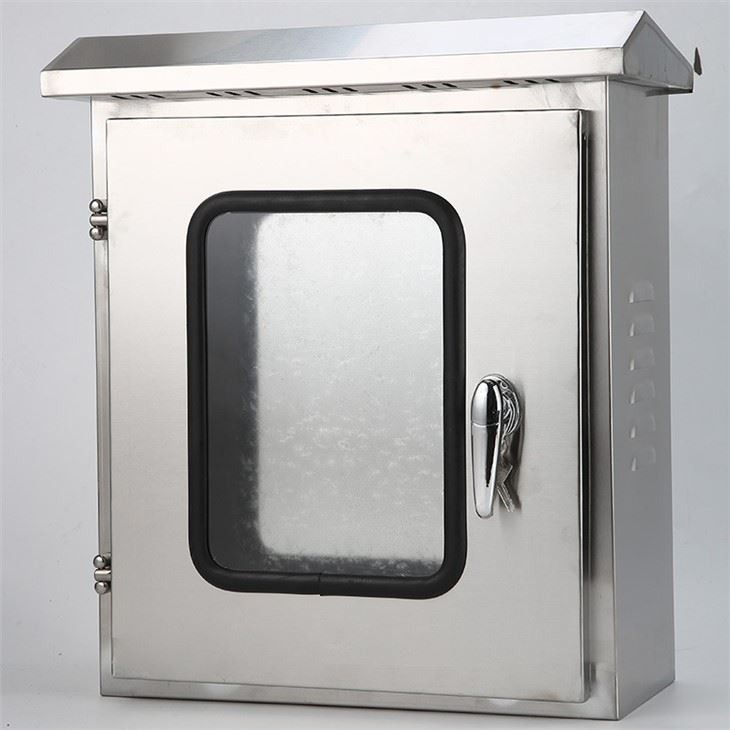

Stainless Steel Electrical Enclosure

The stainless steel electrical enclosure is designed to accommodate various electrical equipment in extreme environments. The stainless enclosures meet the requirements of IEC62208 and IEC/EN/AS60529 up to IP66 IK10 NEMA 4x, and have passed the certification of an independently accredited testing laboratory such as SGS or TUV. Our stainless steel electrical enclosures are designed by experienced engineers and are precision manufactured in China using world-class international manufacturing plants in accordance with the highest standards.

Features-stainless steel junction box:

The overall design is reasonable and the structure is scientific to ensure the safe operation of power grid equipment.

The stainless steel junction box also has many good characteristics such as explosion-proof, moisture-proof, dust-proof, high temperature resistance, anti-aging, impact resistance and flame retardant.

The appearance is very smooth and has anti-rust treatment, the appearance is electrostatic sprayed.
The color of the stainless steel distribution box shell can be customized according to user needs.
And the internal wiring layout of the box can also be customized by the customer.

stainless steel junction box

Specification-stainless steel junction box

Model	W(mm)	H(mm)	D(mm)	Enclosure&Door/mm	Mounting Plate
ZFY252015	250	200	150	1.2	2
ZFY302515	300	250	150	1.2	2
ZFY302520	300	250	200	1.2	2
ZFY303015	300	300	150	1.2	2
ZFY303020	300	300	200	1.2	2
ZFY304020	300	400	200	1.2	2
ZFY403015	400	300	150	1.2	2
ZFY403020	400	300	200	1.2	2
ZFY404020	400	400	200	1.2	2
ZFY406025	400	600	250	1.2	2
ZFY406030	400	600	300	1.2	2
ZFY504015	500	400	150	1.2	2
ZFY504020	500	400	200	1.2	2
ZFY504025	500	400	250	1.2	2
ZFY505025	500	500	250	1.2	2
ZFY604015	600	400	150	1.2	2
ZFY604020	600	400	200	1.2	2
ZFY604025	600	400	250	1.2	2
ZFY605015	600	500	150	1.2	2
ZFY605020	600	500	200	1.2	2
ZFY605025	600	500	250	1.2	2
ZFY606025	600	600	250	1.2	2
ZFY606030	600	600	300	1.2	2
ZFY608030	600	800	300	1.2	2
ZFY705020	700	500	200	1.2	2
ZFY705025	700	500	250	1.2	2
ZFY806020	800	600	200	1.2	2
ZFY806025	800	600	250	1.2	2
ZFY806030	800	600	300	1.2	2
ZFY806040	800	600	400	1.2	2
ZFY808020	800	800	200	1.2	2
ZFY808030	800	800	300	1.2	2
ZFY8010030	800	1000	300	1.2	2
ZFY1006025	1000	600	250	1.2	2
ZFY1006030	1000	600	300	1.2	2
ZFY1008025	1000	800	250	1.2	2
ZFY1008030	1000	800	300	1.2	2
ZFY1008040	1000	800	400	1.2	2
ZFY10010030	1000	1000	300	1.2	2
ZFY10012030	1000	1200	300	1.2	2
ZFY1208030	1200	800	300	1.2	2
ZFY1208040	1200	800	400	1.2	2
ZFY12010030	1200	1000	300	1.2	2

Applications-stainless steel electrical enclosure

◆ The stainless steel electrical enclosure is suitable for use in a strong acid and alkali environment according to the requirements of the use environment and other factors. It has been widely used in outdoor power distribution systems . The stainless steel electrical enclosure has strong anti-corrosion and anti-rust capabilities, and its protection level has reached the IP65 level. It can be made of 201, 304, 316 stainless steel according to user needs, and welded by argon arc welding technology. The surface is polished to ensure a beautiful appearance. It can be subdivided into outdoor waterproof wall-mounted, outdoor waterproof floor-mounted and Indoor wall-mounted etc.

stainless steel electrical enclosures

◆ The size of the stainless steel electrical enclosure can be customized according to customer requirements. There are various styles for you to choose. You can install control systems with different electrical properties according to your needs, such as meter boxes, air conditioning control boxes, street light control boxes, outdoor waterproofing Box, dual power supply control box, isolation switch box and water pump control box, etc.

_02 _03

_04

1. Are you a factory?
ZFY TECH is the manufacturer.We have around decades of years for manufacturing experiences in NEMA rated enclosures,ip rated box and metal metal enclosures for electrical etc. And we do have our own trading company.The professional team could tailor the service to our customer not only limited to the products from our own company.
2. What is MOQ?
We have our supply chain.No matter big QTY or small batch.Both are OK for us.
3. How long is the delivery time?
It depends on the quantity.
For samples or regular items in small qty ,we promise to sent in 1-3 days. Most have in stock.
For mass production, such like 20ft container we promise to sent in 15-30 days.

4. How about the payment terms?
We accept PayPal, west union and T/T.
5. Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.
6. How can we get the samples?Is it free?
We provide free samples by express, but you need pay the express charge or make samples collection at your side.
7. What's the price?
Different items different market will be different cost, we will keep to give best and competitive price for each customer.

8. How do we know you are a reliable supplier?
As a professional manufacturer, we do good quality to cooperate with many countries,such as Russia,Brazil,US,Dubai and so on. You can check the test report and certification from this page.
