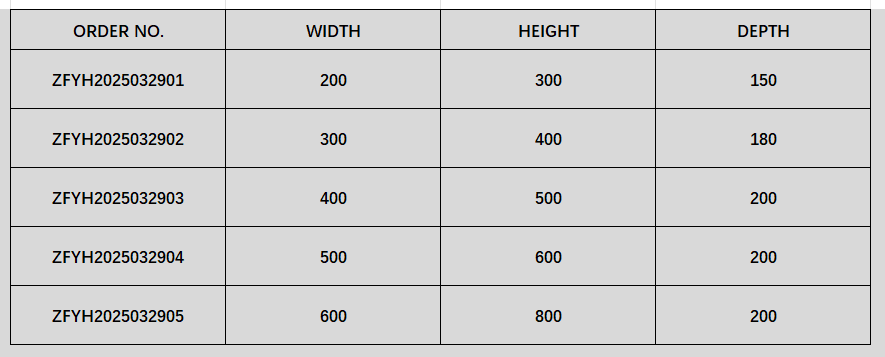

Products Dimension(mm)

product-885-357

Products Description

Features of products

SMC series is a new type of switch box, which is made of glass fiber reinforced polyester, with waterproof grade of IP66 and impact resistance of IK8. The characteristic of polyesters is that they are reinforced by mixing 30% glass fiber to achieve a high resistance and mechanical stiffness (IK8).
Compared with the metal box, the SMC series weighs only 1/3 of the metal box and is more suitable for corrosive and humid environments.
Corrosion resistance: It is not affected by humidity and chemicals, making it suitable for long-term use.
Good insulation performance: It prevents electric leakage and is suitable for places with dense crowds or narrow spaces
Flame retardancy: It will not burn or explode, reducing the risk of fire.
Sealing and waterproofing: It has good sealing performance and can effectively prevent rainwater from infiltrating.
Easy installation: It is easy to install and disassemble, and convenient for maintenance.
Long service life: The outdoor service life can reach more than 40 years, and the indoor service life can reach more than 60 years.

Due to its characteristics such as corrosion resistance, good insulation performance, and high strength, the fiberglass reinforced plastic (FRP) electric meter box can be used in the oilfield environment. The following is a detailed analysis:

Corrosion Resistance Performance

Advantages: The main materials of the FRP electric meter box are resin and glass fiber, both of which have excellent anti-corrosion properties. Resin can resist the erosion of chemical substances such as acids and alkalis, while glass fiber enhances the impact resistance and wear resistance of the material.
Applications: In the oilfield environment, the FRP electric meter box can be installed in areas containing corrosive substances, such as places close to oil storage tanks or pipelines, to protect the internal electrical equipment from corrosion.

Insulation Performance
Advantages: The FRP electric meter box has excellent insulation performance, which can effectively prevent electric leakage and ensure the safety of personnel.
Applications: During oilfield operations, the electric meter box with good insulation performance can reduce safety accidents caused by electric leakage, and is especially suitable for areas that are humid or prone to contact with water sources.

High Strength and Seismic Performance

Advantages: The FRP electric meter box has high strength and seismic performance, and can withstand the vibrations and impacts in the oilfield environment.
Applications: In places where oilfield equipment moves frequently or there is a large amount of vibration, the FRP electric meter box can serve as a reliable metering and control device.

Sealing and Waterproof Performance

Advantages: The FRP electric meter box has good sealing and waterproof performance, which can effectively prevent rainwater and other liquids from seeping in.
Applications: In the open-air or semi-open-air oilfield environment, the sealing and waterproof performance can protect the internal equipment of the electric meter box from damage.

Although the FRP electric meter box performs excellently in terms of corrosion resistance, insulation performance, high strength, and sealing and waterproofing, the following points still need to be considered in practical applications:
Environmental Adaptability: Ensure that the electric meter box can operate normally within the extreme temperature range, such as from -40°C to +80°C.
Installation and Maintenance: Conduct regular inspections and maintenance to ensure that the electric meter box is in good working condition.

Special Requirements: According to the specific environment and requirements of the oilfield, select appropriate models and configurations, such as adding additional protective measures or customized designs.

In conclusion, the FRP electric meter box can be used in the oilfield environment and can effectively address the unique challenges of the oilfield.
