32 Amp 3 Pin Socket
Pole - 3 Pole 4 Pole 5 Pole
Clock Position - 4h/6h/9h
Voltage - 110V - 230V- 440V AC
Color Code - Red
Configuration - Female Socket
Protection Degree - IP67 Watertight
Send Inquiry
Chat Now
Product Introduction
Waterproof Industrial Socket /32 Amp 3 Pin Socket
ZFY TECH,leading supplier of high quality single phase and 3 phase industrial plug,offers a wide range of industrial plugs,16 amp socket, 32 amp socket, 63 amp socket and 125 amp socket. The voltage is also optional from 100v to 415. Number of pins are available from 2pins, 3pins, 4pins, 5pins in different colors red, blue, yellow, black .ZFY TECH’s waterproof electrical plugs and sockets protect your industrial connection from power outage or power leakage, safely and reliably.

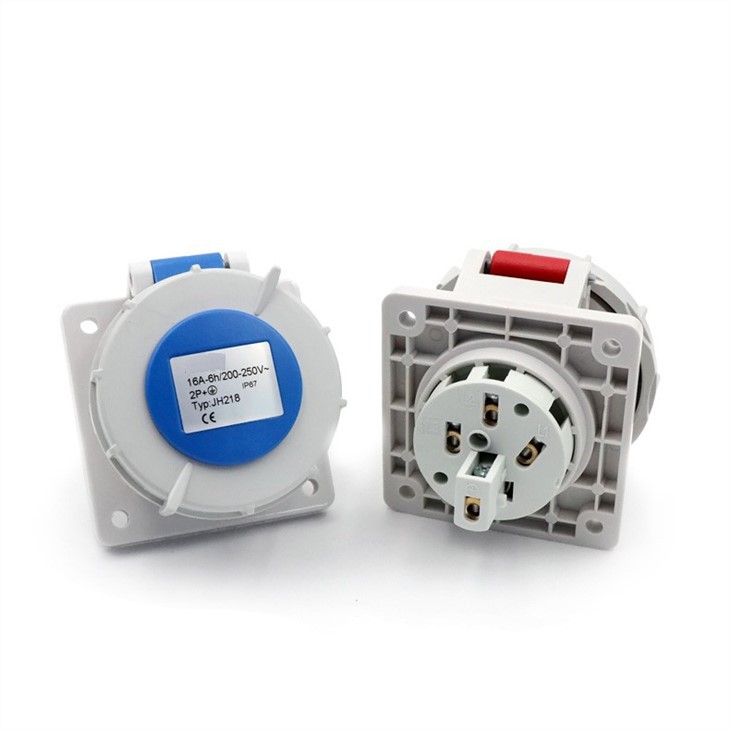

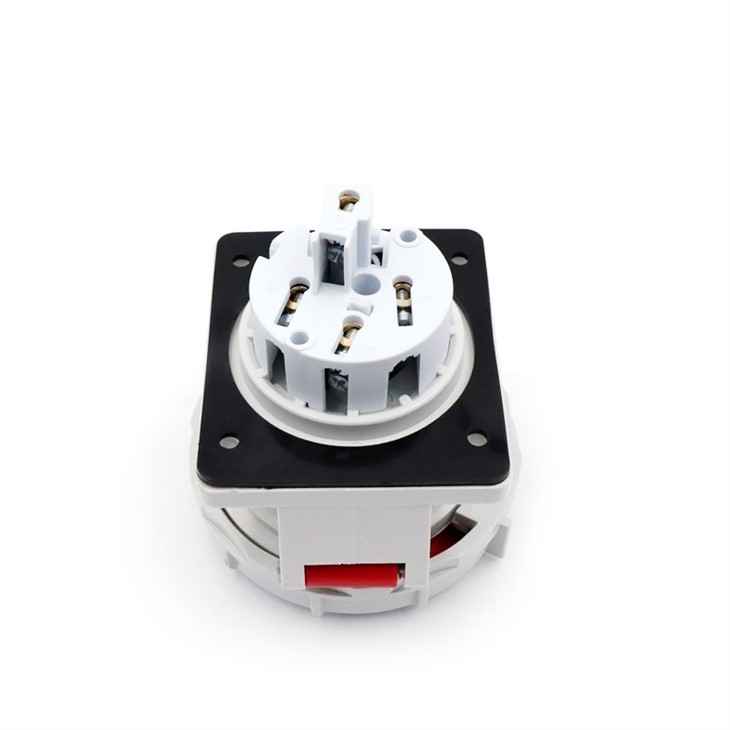

Waterproof Industrial Socket 3Pin 32 Amps
Features of industrial plug:
· IP44 to IP67, splashproof,waterproof and watertight available.
· The contact pins are made by nickel-plated brass, ensuring a stable conductive performance.
· The PP/PA material made sleeves and grip gives a pleasant insert experience.
· Outstanding temperature and environmental and impact endurance.
· IEC, CEE, CB, CCC, TUV, GS, SEMKO, ROHS certified.
Product Parameter:
| Current | Poles | 110V | 230V | 400V | Package Unit | Weight |
| 50a.60Hz | 50a.60Hz | 50a.60Hz | ||||
| 3P 4P 5P | 3P 4P 5P | 3P 4P 5P | PCS/BOX | G/PCS | ||
| 4h 4h 4h | 6h 9h 9h | 9h 6h 6h | ||||
| 32A | 3 | ZFY1491 | ZFY1492 | ZFY1493 | 10 | 236 |
| 4 | ZFY1494 | ZFY1495 | ZFY1496 | 10 | 250 | |
| 5 | ZFY1498 | ZFY1499 | ZFY1500 | 10 | 288 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | k | l | l1 | α | |
| 32A | 3 | 100 | 92 | 62 | 85 | 77 | 5.3 | 8 | 2 | 107 | 51 | 73 | 85 | 20° | |
| 4 | 100 | 92 | 62 | 85 | 77 | 5.3 | 8 | 2 | 107 | 51 | 73 | 85 | 20° | ||
| 5 | 100 | 92 | 62 | 85 | 77 | 5.3 | 8 | 2 | 107 | 52 | 75 | 86 | 20° | ||
| Conductor cross-sectional area(mm²)Min To Max 4-6 | |||||||||||||||
1. Any question from you are welcome and will be replied in 24 hours
2. Wholesale price without MOQ but with reasonable price
3.Answer question in every detail and efficiently
4.Provide the presentational solution once you confront any problem or question while using our waterproof electrical plugs and sockets
5.Samples will be offered to check the quality of our product for your selection of potential partner..
ZHONGFEIYA TECH can design and make new mold to produce quick connectors with your special requirement.And anything else,jus feel free to contact ZHOGNFEIYA TECH at anytime. And we will try my best to assist you!
